New Experiment Of Making A 12 Volt DIY DC Motor From Scratch
Building a 12-volt DIY DC motor from scratch is an exciting project that combines creativity, engineering, and practical electronics. Whether you are a student, hobbyist, or science enthusiast, constructing your own DC motor provides a hands-on understanding of electromagnetic principles and mechanical motion. Unlike purchasing a ready-made motor, creating one from basic materials allows you to see exactly how electrical energy is transformed into rotational movement. This project is also an excellent educational experiment because it demonstrates fundamental concepts such as magnetic fields, current flow, torque generation, and commutation.
A homemade 12-volt DC motor can be constructed using simple materials like copper wire, permanent magnets, a steel shaft, bearings, brushes, and a power source. Although the design may appear simple, every component plays a critical role in ensuring smooth operation. The rotor, stator, and commutator work together to create continuous rotation when electrical current passes through the motor windings. Understanding the purpose of each part helps builders troubleshoot problems and improve performance.
One of the most rewarding aspects of this experiment is seeing the motor spin for the first time. The process involves careful planning, precise assembly, and multiple rounds of testing. Builders often discover valuable lessons about balancing, electrical connections, and magnetic alignment during construction. These lessons contribute to a deeper appreciation of how commercial electric motors are manufactured and optimized.
Another advantage of this project is its flexibility. The motor can be modified with different coil configurations, stronger magnets, or alternative frame materials to achieve varying speeds and torque outputs. This adaptability makes it suitable for science fairs, educational workshops, and personal experimentation. Each modification offers new insights into motor performance and efficiency.
As renewable energy systems, robotics, and automation continue to grow in popularity, understanding motor technology becomes increasingly valuable. A DIY 12-volt DC motor project serves as an excellent introduction to the broader world of electrical engineering and mechanical design. By building one from scratch, experimenters gain practical skills that can be applied to more advanced projects in the future.
Materials And Components Required For The DIY Motor
The first step in building a 12-volt DC motor is gathering all necessary materials and components. The most important item is enameled copper wire, which is used to create the armature coils. The wire should be thick enough to carry current efficiently while still being flexible enough for winding. Permanent magnets, preferably neodymium magnets, are also required to generate the magnetic field that interacts with the rotor windings.
A sturdy shaft serves as the motor’s rotating axis. Steel rods are commonly used because they provide strength and durability. Bearings or bushings are installed at both ends of the shaft to minimize friction and ensure smooth rotation. These components significantly improve motor efficiency and reduce wear over time.
The commutator is another essential part of the motor. It is responsible for reversing the current direction within the armature coils, allowing continuous rotation. Builders can create a simple commutator using copper tubing or copper strips mounted on an insulated section of the shaft. Carbon brushes or spring-loaded copper contacts are then used to transfer electrical current from the power source to the rotating commutator.
The motor frame can be constructed from wood, acrylic, metal, or other rigid materials. A stable frame keeps all components properly aligned and prevents vibrations during operation. Accurate alignment is especially important because even small deviations can increase friction and reduce performance.
Additional items include screws, nuts, washers, soldering equipment, electrical connectors, and a 12-volt battery or DC power supply. Safety equipment such as gloves and safety glasses should also be used during construction. Having all materials prepared before assembly helps streamline the building process and reduces interruptions during the experiment.
Step-By-Step Construction Process
The construction process begins with creating the rotor or armature. Copper wire is carefully wound around a cylindrical core to form electromagnetic coils. Multiple layers of wire can be added to increase the strength of the magnetic field generated when current flows through the windings. The coil ends are then connected to the commutator segments mounted on the shaft.
After completing the armature, the shaft is installed through the center of the rotor assembly. Bearings are attached to both ends to allow free rotation. Proper balancing of the rotor is crucial because uneven weight distribution can cause excessive vibration and reduce motor efficiency. Builders often test the rotor balance before proceeding to the next stage.
The stator assembly is then constructed using permanent magnets positioned around the rotor. The magnets must be arranged with opposite poles facing each other to create a strong magnetic field across the armature. Accurate magnet placement is critical because the interaction between the magnetic field and armature current generates the rotational force that drives the motor.
Next, the brushes are installed so they make consistent contact with the commutator. The brush pressure should be sufficient to maintain electrical connection without creating excessive friction. Builders typically use adjustable brush holders to fine-tune contact pressure during testing and operation.
Once all components are assembled, the motor is connected to a 12-volt power source for initial testing. If everything is aligned correctly, the rotor should begin rotating immediately. Minor adjustments to brush position, magnet spacing, or shaft alignment may be necessary to achieve smooth and efficient operation. This testing phase often provides valuable opportunities for learning and improvement.
Understanding The Working Principle Of A DC Motor
The operation of a DC motor is based on the interaction between magnetic fields and electric current. When current flows through the armature coils, a magnetic field is generated around the windings. This magnetic field interacts with the permanent magnets in the stator, producing a force that causes the rotor to rotate.
The fundamental principle behind this motion is known as the Lorentz force. According to this principle, a conductor carrying current within a magnetic field experiences a force perpendicular to both the current direction and magnetic field lines. In a DC motor, this force creates torque that turns the rotor around its axis.
The commutator plays a crucial role in maintaining continuous rotation. Without it, the rotor would rotate only partially before stopping. As the rotor spins, the commutator periodically reverses the current direction within the armature coils. This reversal ensures that the magnetic forces continue pushing the rotor in the same rotational direction.
Motor speed depends on several factors, including supply voltage, coil resistance, magnetic field strength, and mechanical load. Increasing the voltage generally results in higher rotational speed, while stronger magnets can increase torque output. Understanding these relationships allows builders to optimize motor performance for different applications.
Efficiency is another important consideration. Some electrical energy is lost as heat due to resistance in the windings and friction within the bearings and brushes. Reducing these losses through careful design and high-quality components can significantly improve overall performance. Studying these efficiency factors provides valuable insight into real-world motor engineering.
Testing, Performance Analysis, And Future Improvements
After completing the motor, systematic testing helps evaluate its performance. Initial measurements typically include rotational speed, current consumption, voltage, and torque output. These measurements provide a baseline for assessing the effectiveness of the design and identifying areas for improvement.
One common test involves connecting different loads to the motor shaft and observing changes in speed and current draw. As the load increases, the motor requires more torque, which usually results in higher current consumption. Recording these values helps builders understand the motor's operating characteristics and limitations.
Temperature monitoring is also important during extended operation. Excessive heat may indicate high electrical resistance, poor brush contact, or inadequate cooling. Addressing these issues can improve reliability and extend component lifespan. Many experimenters add cooling fans or ventilation openings to enhance heat dissipation.
Future improvements may include using stronger neodymium magnets, increasing the number of armature windings, or upgrading to precision bearings. These modifications can increase torque, improve efficiency, and reduce mechanical losses. Some builders also experiment with different commutator designs to achieve smoother current switching and reduced electrical sparking.
Ultimately, constructing a 12-volt DIY DC motor from scratch is more than just a science project. It is a practical learning experience that combines electrical engineering, mechanics, and problem-solving skills. Through careful design, testing, and refinement, builders gain a deeper understanding of motor technology and develop valuable technical knowledge that can be applied to countless future projects.
Today We Learn About How To make A 12 Volt Diy DC Motor From Scratch Full Prosses Using Iron Plate, wire no 28 and magnet Step by step

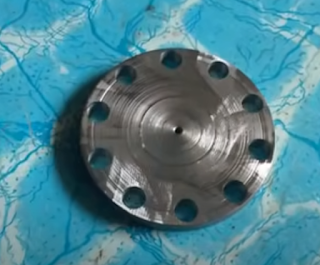

1- First of All we will cut a round or circle shaped piece of an metal like iron Shown below
OR VISIT OUR YOUTUBE CHANNEL: MULTI ELECTRO
